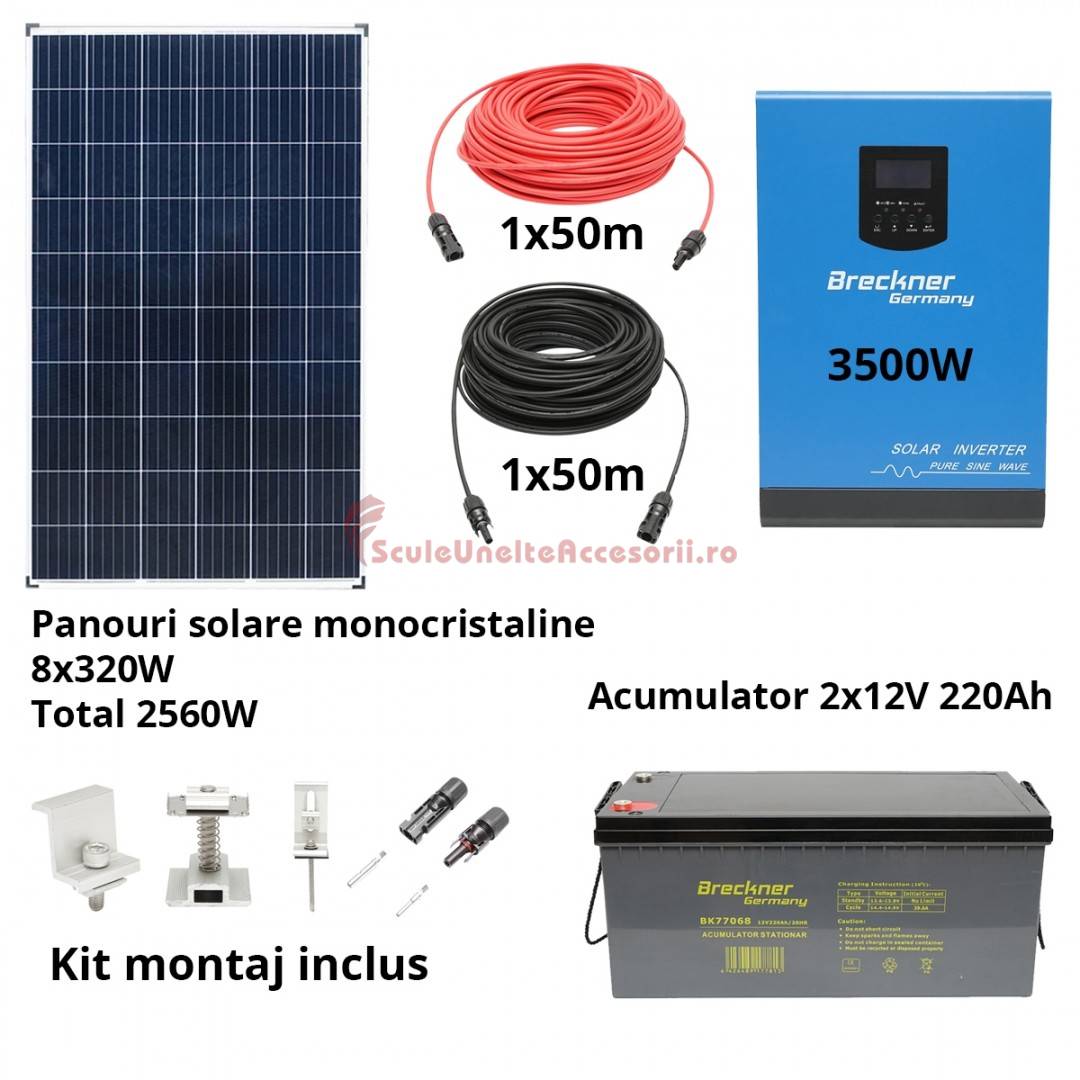

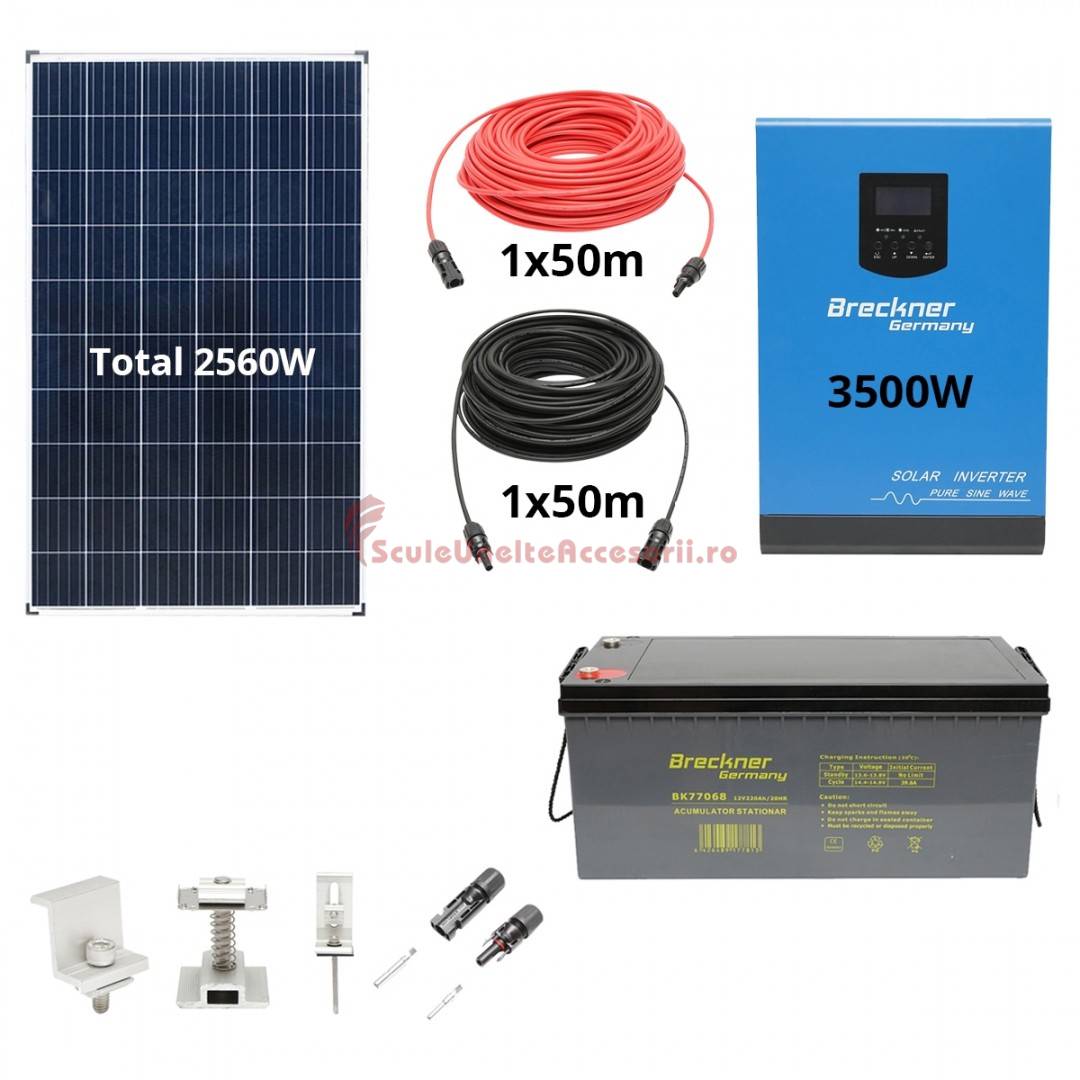

Sistem solar fotovoltaic cu invertor 3.5KW 220V ON-Grid Hibrid 100A MPPT Breckner Germay

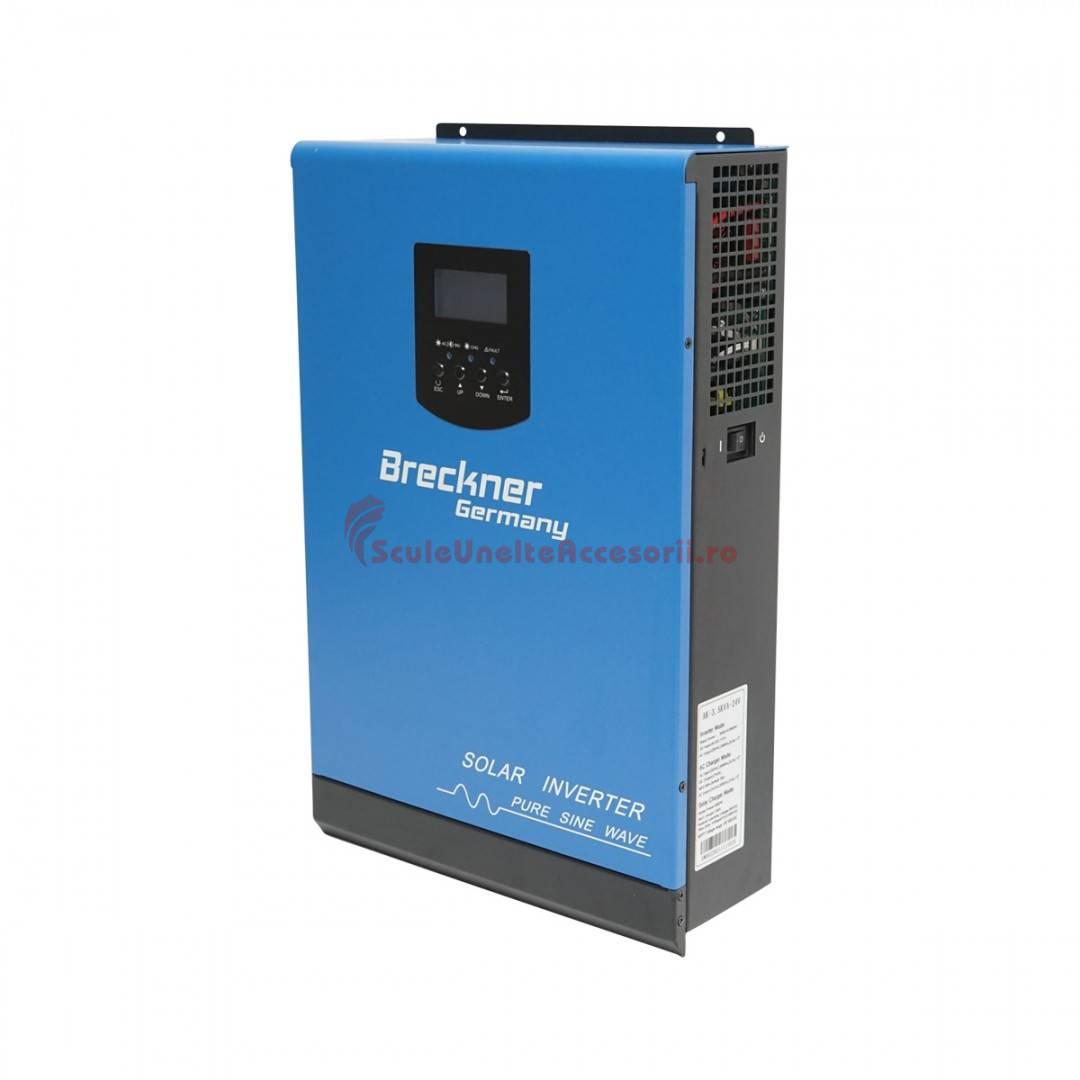

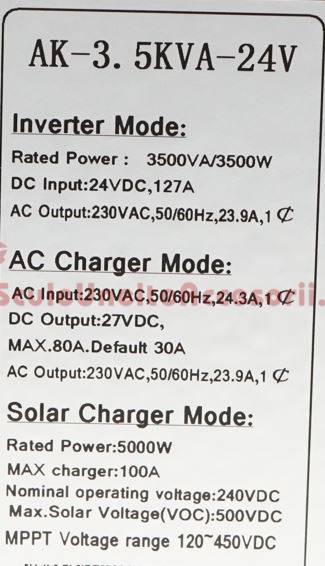

1. Invertor solar Off-Grid 5kVA Hybrid Breckner Germany,100A MPPT invertor + controler

• Putere iesire invertor 220V - 3500W
• ON-Grid, OFF-grid
•  Intrare DC 24VDC, 127A
• Iesire AC 230V, 56/60Hz, 23.9A
• Tehnologie regulator: Maximum Power Point Tracking (MPPT)
• Protectie la polaritate inversa

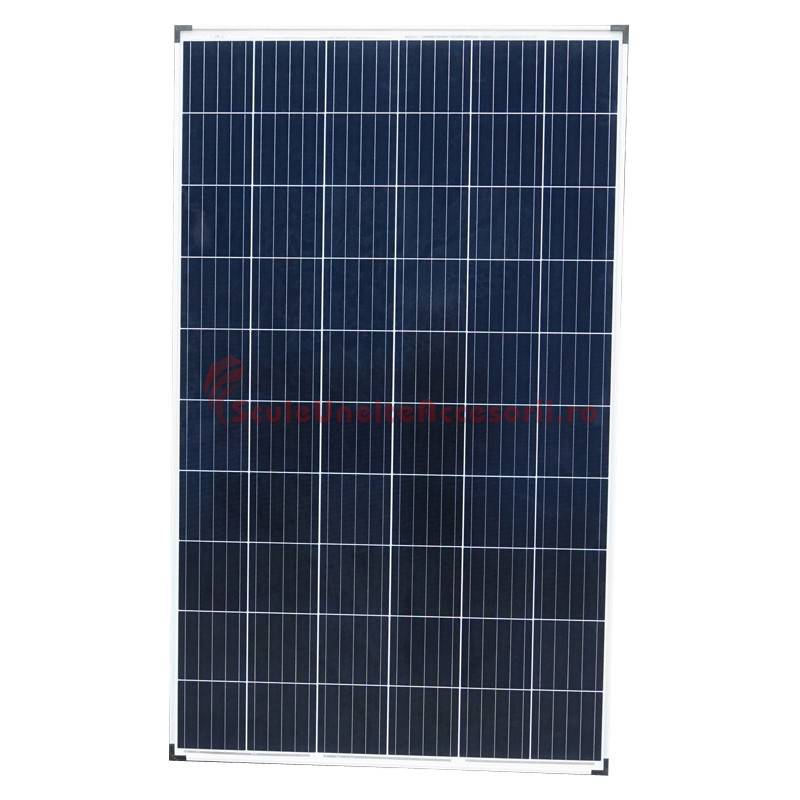

2. Panouri solare 325W fotovoltaice monocristaline X 8 buc  max.2600W Breckner Germany

•  Putere max. panou solar 325W
• Tensiune max. panou solar 47V
• Intensitate max. panou 7A
• Dimensiuni panou solar 1956x892x35mm
• Greutate 19Kg

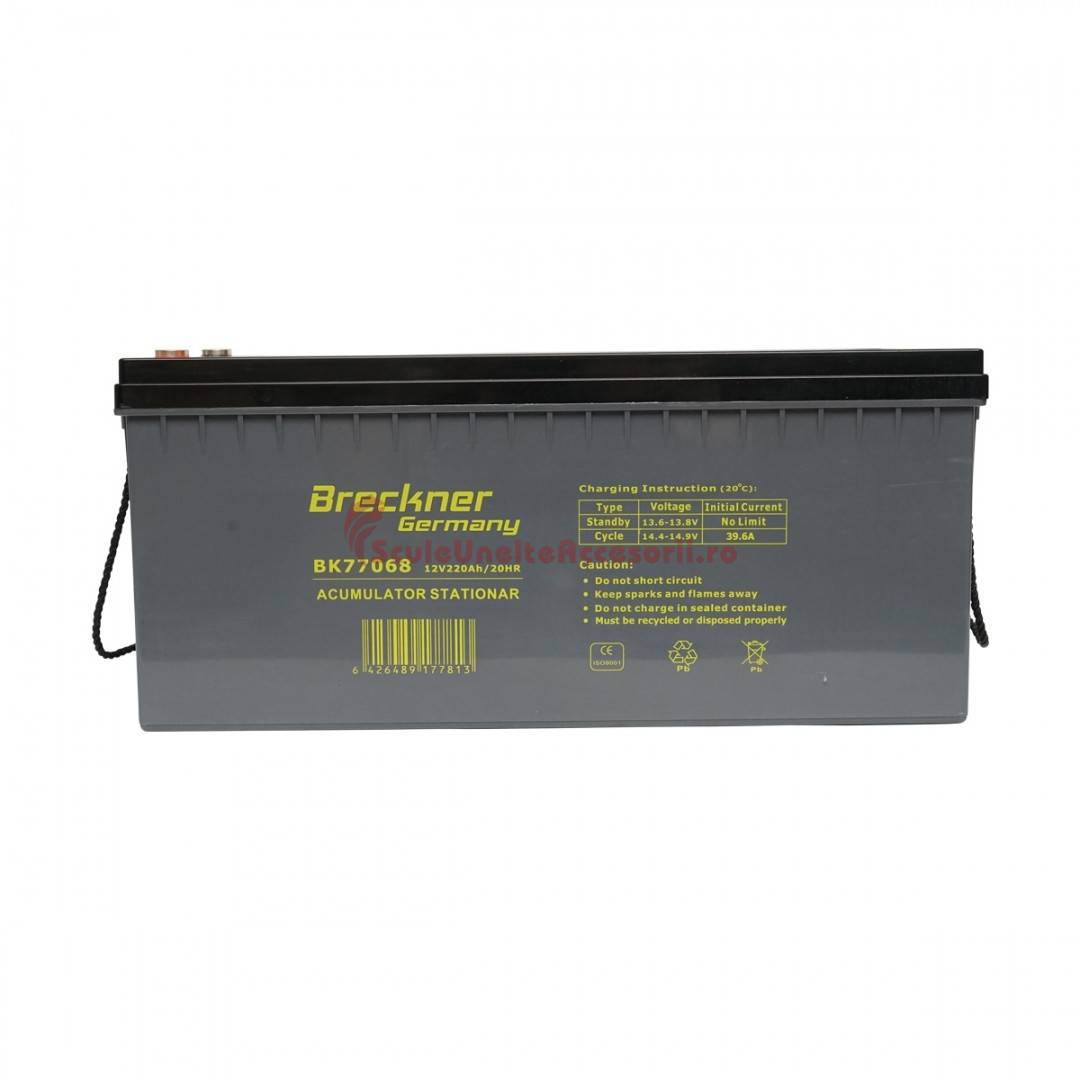

3. Acumulatori stationari 2 buc X 12V 200Ah Breckner Germany

• Tensiune 12V
• Sarcina 200Ah
• Greutate 65Kg
• Dimensiuni 522x240x220mm

4. Conectori tip MC4 x 6 seturi Breckner Germany

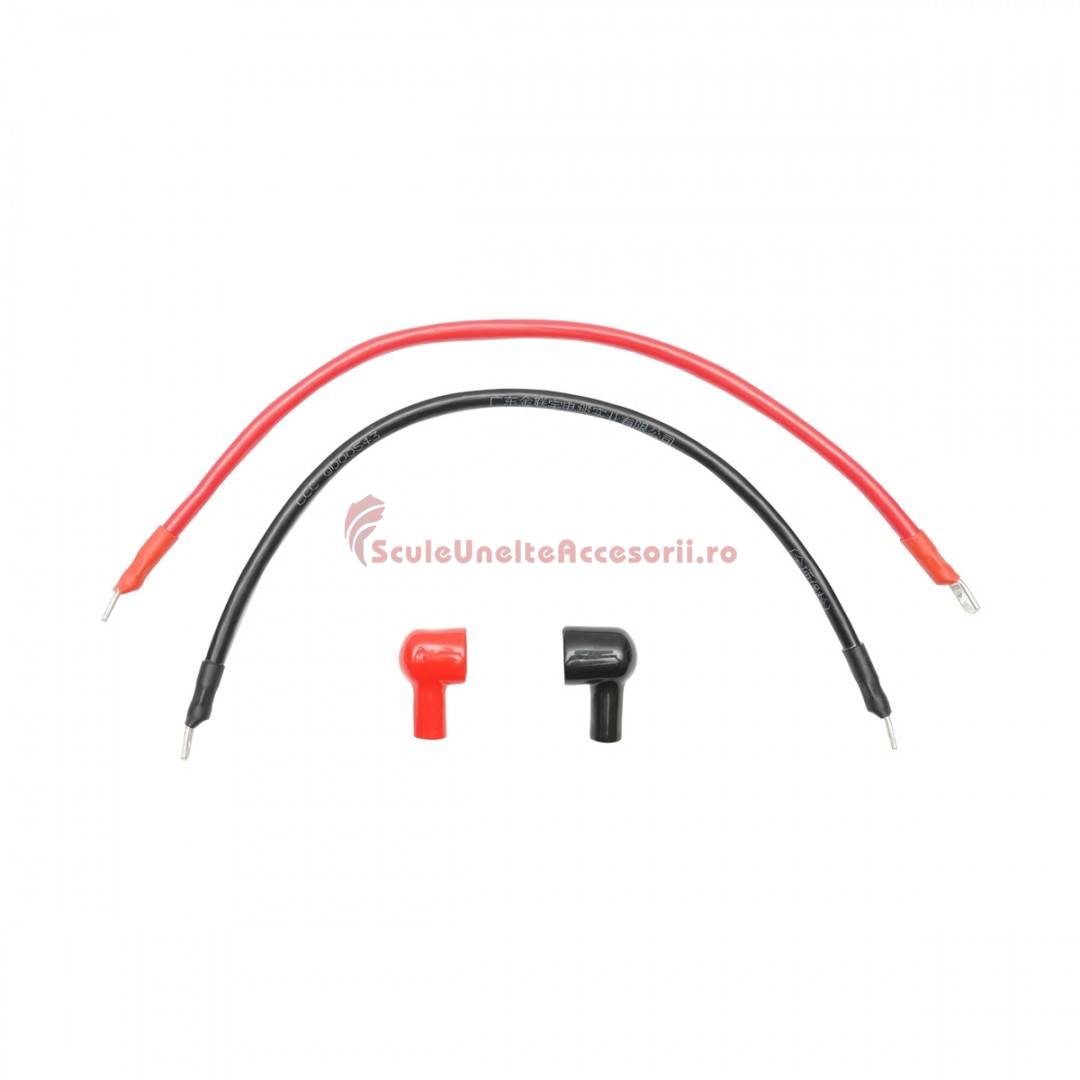

5. Set cabluri alimentare acumulatori X 1 set Breckner Germany

6. Cablu panou solar Breckner Germany

• 1 x 50 cablu rosu H1Z2Z2-K 4mm
• 1 x 50 cablu negru  H1Z2Z2-K 4mm

7. Sistem fixare panouri solare Breckner Germany

• Cleme
• Sina
• Elemente imbinare (pentru acoperis tabla/tigla)
