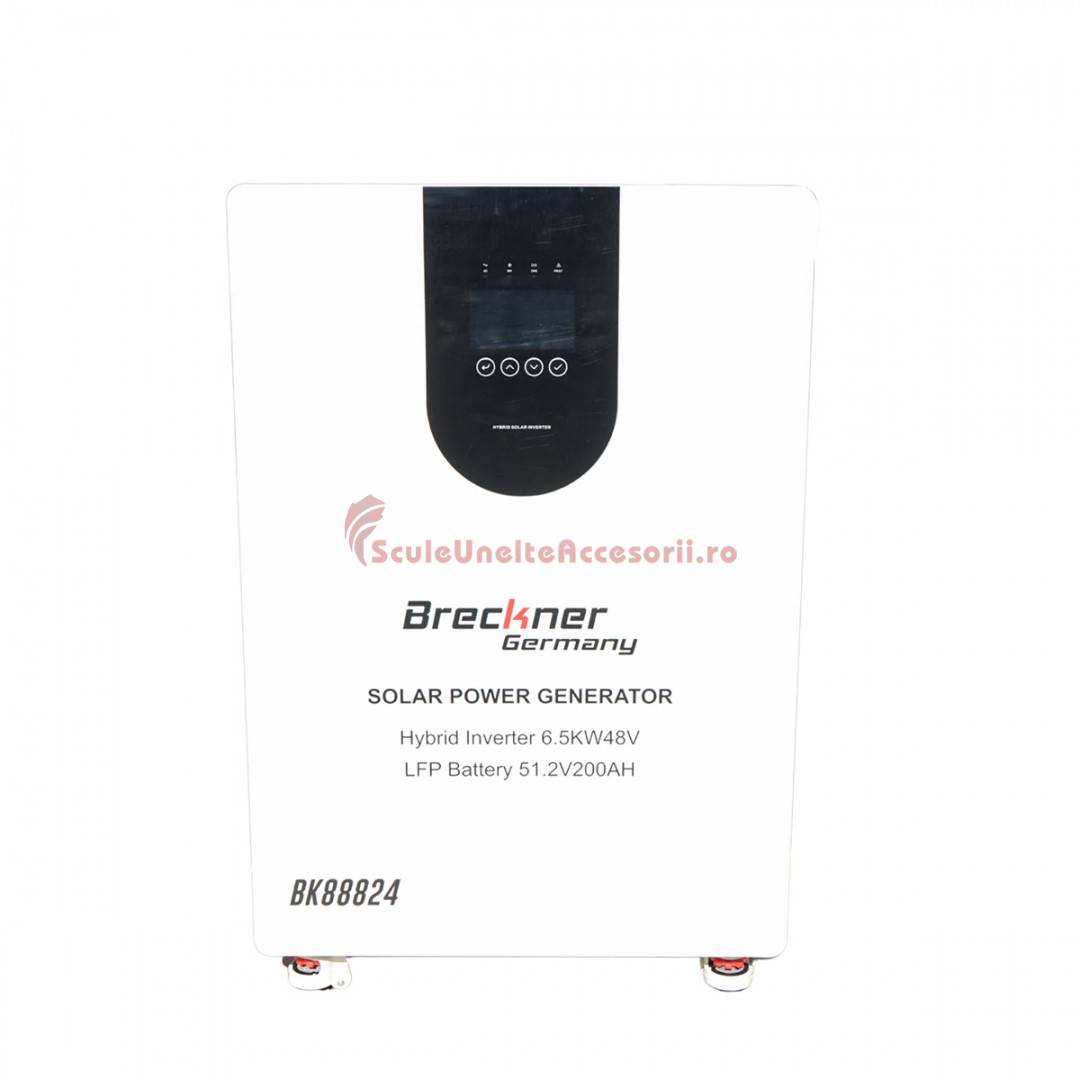

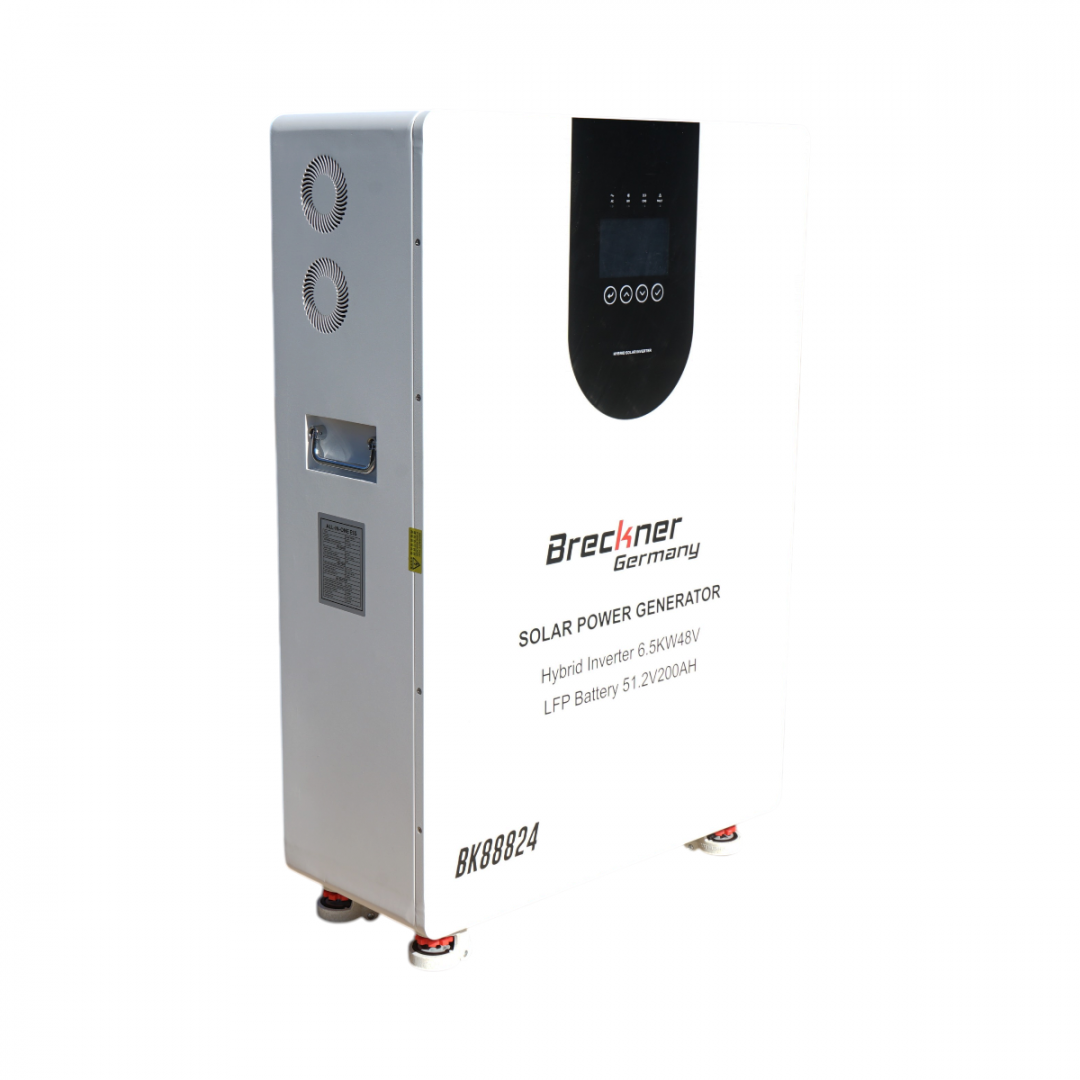

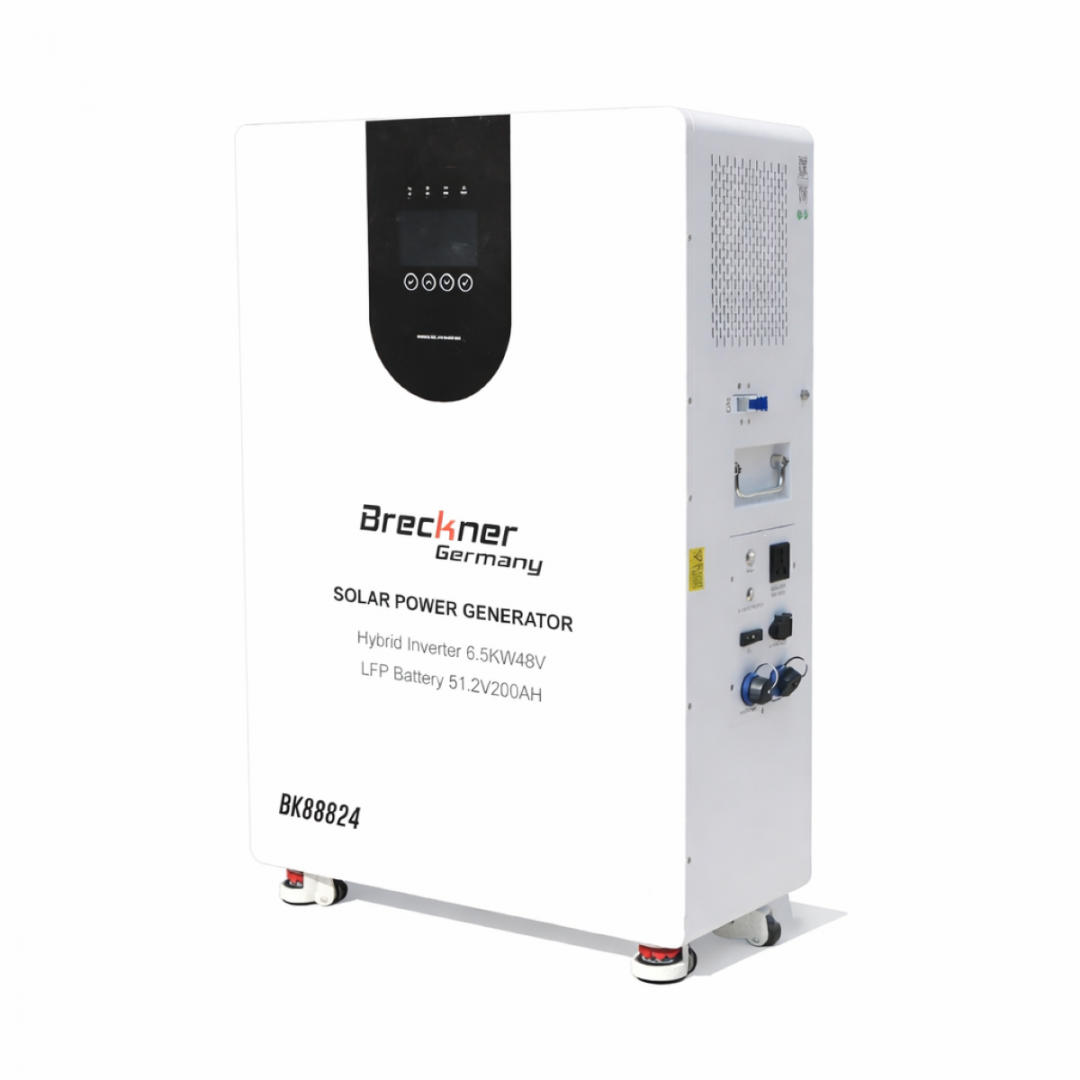

Sistem solar All-in-One cu invertor hibrid 6.5kW, 48V ON/OFF GRID monofazic, baterie integrata 10.24kWh Li-ion 51.2V 200Ah Breckner Germany
Cod produs: BK88824
In stoc
TRANSPORT GRATUIT PENTRU MAX. 30 KG
Pret cu TVA: 12756.13 Lei
Stoc limitat
|
|
|
|
|
|
Comanda instant - Sistem solar All-in-One cu invertor hibrid 6.5kW, 48V ON/OFF GRID monofazic, baterie integrata 10.24kWh Li-ion 51.2V 200Ah Breckner Germany
|
Sistem solar All-in-One cu invertor hibrid 6.5kW, 48V ON/OFF GRID monofazic, baterie integrata 10.24kWh Li-ion 51.2V 200Ah Breckner Germany |
|
| Brand |
Breckner Germany |
| Culoare |
Alb |
| Model |
Sistem All-in-One ESS 6.5 kW–10 kWh |
| Temperatura de functionare |
-10 – 50°C |
| INTRARE PV (PANOURI SOLARE) |
|
| Putere maxima de intrare |
9 kW |
| Randament MPPT |
≥ 97% |
| Interval tensiune PV |
60 - 450V DC |
| Curent maxim PV |
40 A |
| PARAMETRI CURENT ALTERNATIV (AC) |
|
| Putere nominala |
6.5 kW |
| Capacitate nominala |
10 kWh |
| Tensiune nominala de lucru |
220V AC |
| Frecventa nominala |
50 / 60 Hz |
| PARAMETRI IESIRE (AC) |
|
| Tensiune nominala de iesire |
220V AC |
| Frecventa nominala |
50 - 60 Hz |
| Eficienta maxima conversie (DC/AC) |
98% |
| Putere de iesire |
6.5 kW |
| Iesire in modul baterie (AC) |
Unda sinusoidala pura |
| PARAMETRI BATERIE |
|
| Tip baterie |
Li-ion |
| Capacitate nominala |
200 Ah |
| Tensiune nominala |
51.2 V DC |
| Energie stocata |
10.24 kWh |
| Interval tensiune |
40 - 58.4 V |

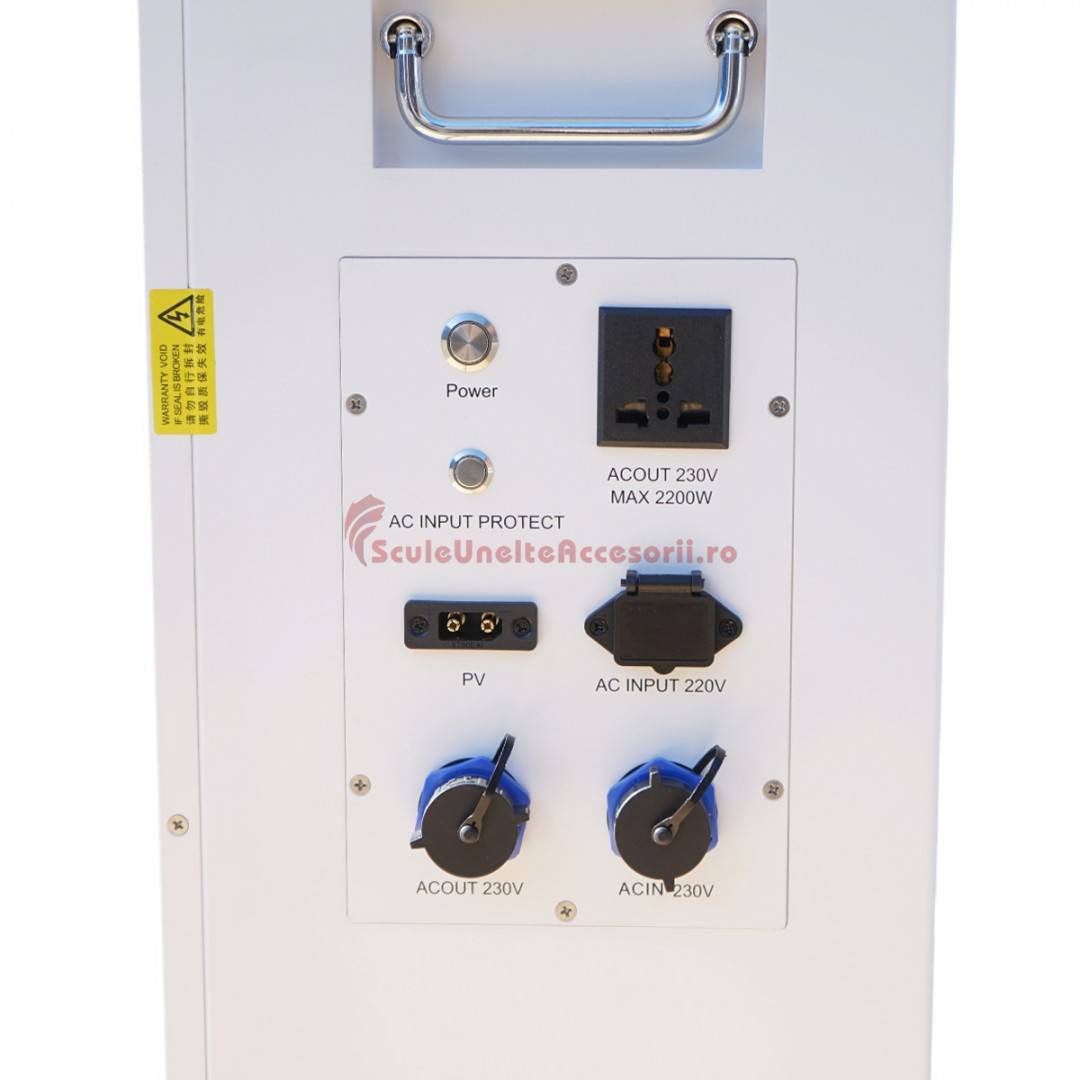

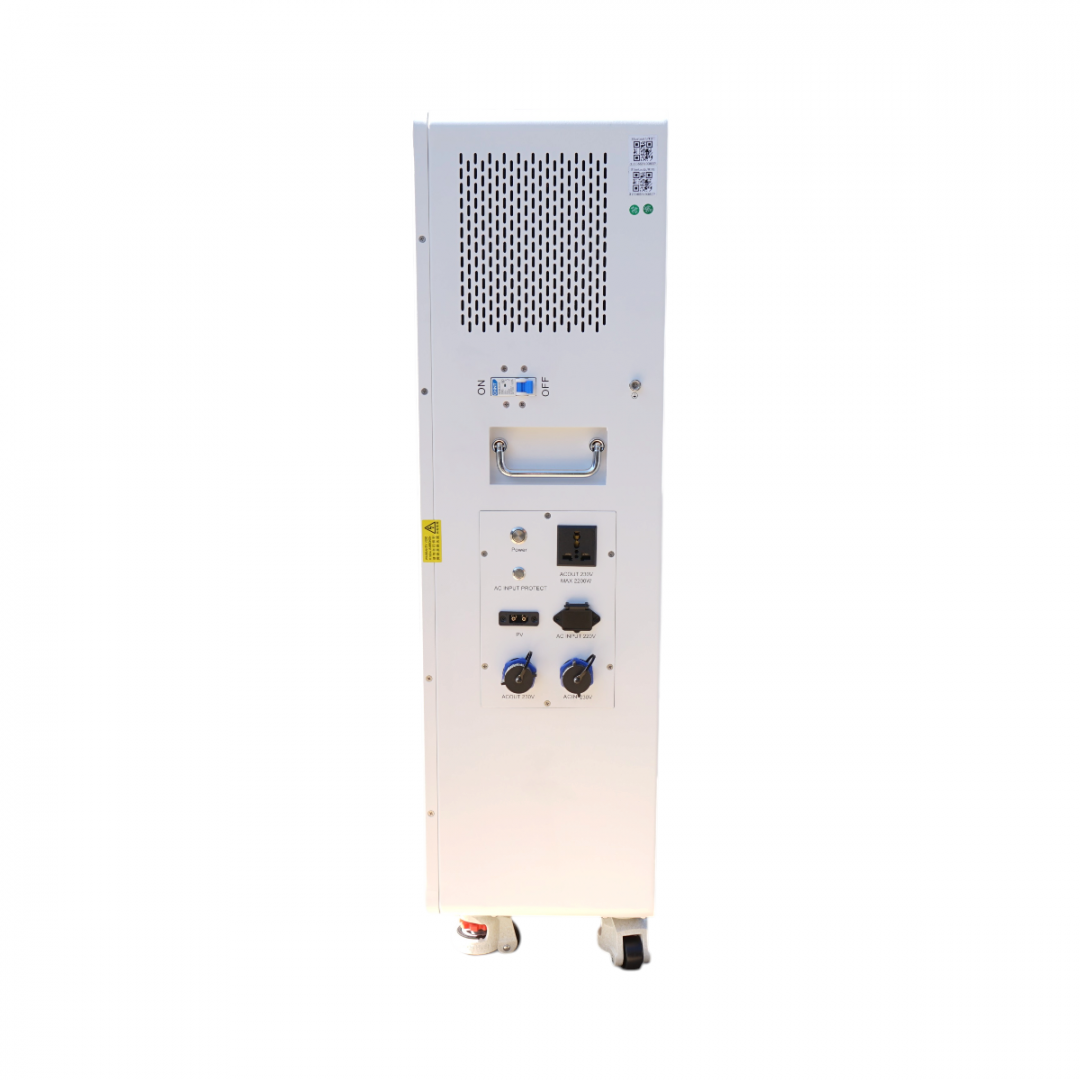

| IESIRI SUPLIMENTARE |
|
| Iesire AC standard |
230 V - maxim 2200 W (priza universala) |
| Intrare AC |
220 V |
| Intrare panouri fotovoltaice (PV) |
Conector dedicat panouri solare |
| Intrare AC externa |
AC INPUT 220 V |
| Conector industrial |
AC OUT 230 V |
| Conector industrial entru alimentare externa) |
AC IN 230 V |
| Buton pornire sistem |
Power |
| Protectie intrare retea |
AC Input Protect |
| Montare |
Podea |
| Dimensiuni totale (L × l × H) |
600 x 250 x 850 mm |
| Greutate |
103 kg |
|
|
|
