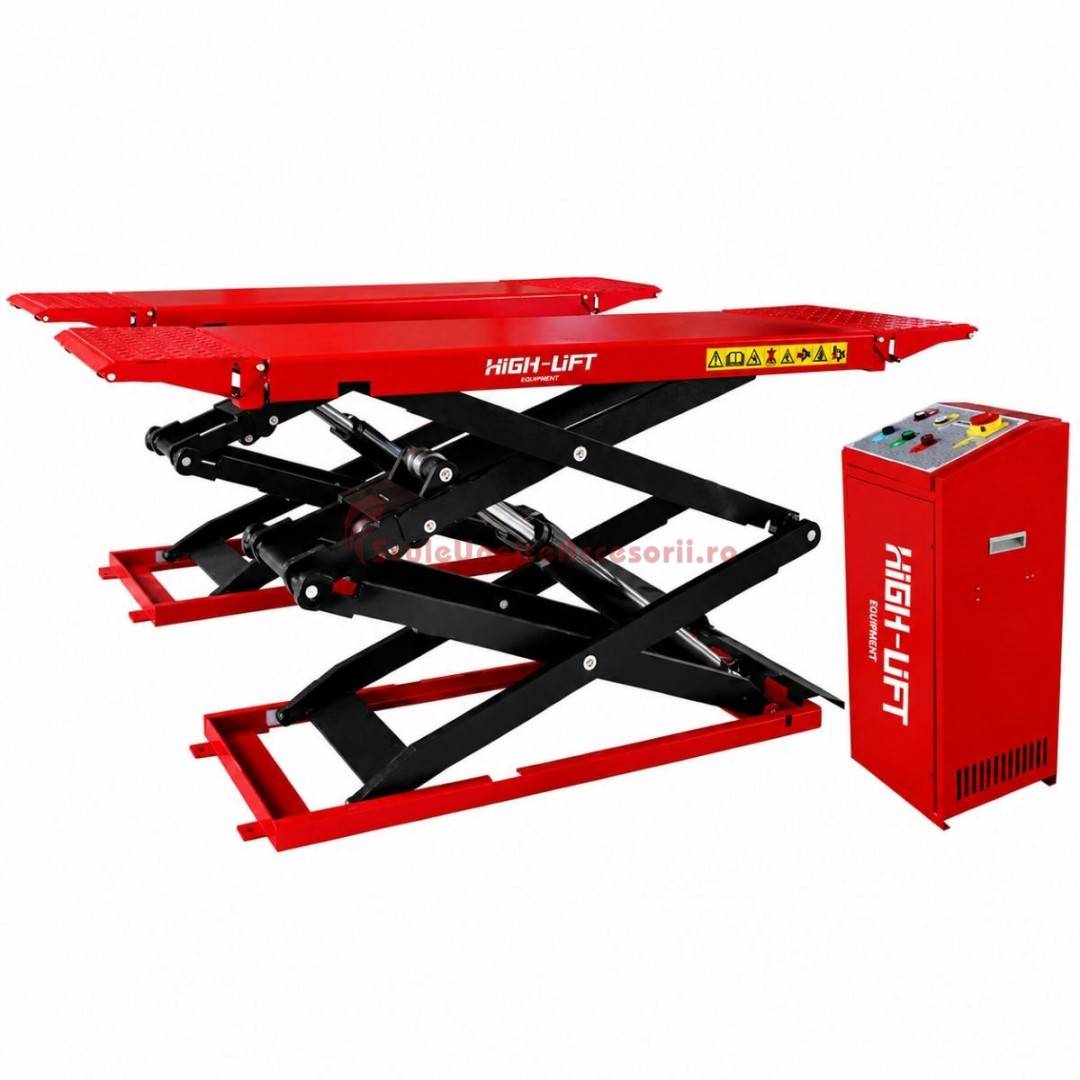

Elevator auto tip foarfeca 380V, 2.2kW, capacitate ridicare 3500kg, deblocare pneumatica, inaltime ridicare 110-1800mm
Marca: Breckner Germany Cod produs: DISVJ78
In stoc
TRANSPORT GRATUIT PENTRU MAX. 30 KG
Pret cu TVA: 17349.21 Lei
Stoc limitat
|
|
|
|
|
|
Comanda instant - Elevator auto tip foarfeca 380V, 2.2kW, capacitate ridicare 3500kg, deblocare pneumatica, inaltime ridicare 110-1800mm
|
Elevator auto tip foarfeca 380V, 2.2kW, capacitate ridicare 3500kg, deblocare pneumatica, inaltime ridicare 110-1800mm |
|
| Capacitate maxima de ridicare |
3500 kg (3.5 Tone) |
| Putere motor |
2.2 kW |
| Tensiune alimentare |
380 V |
| Inaltime minima |
110 mm |
| Inaltime maxima |
1800 mm |
| Sistem deblocare |
Pneumatic |

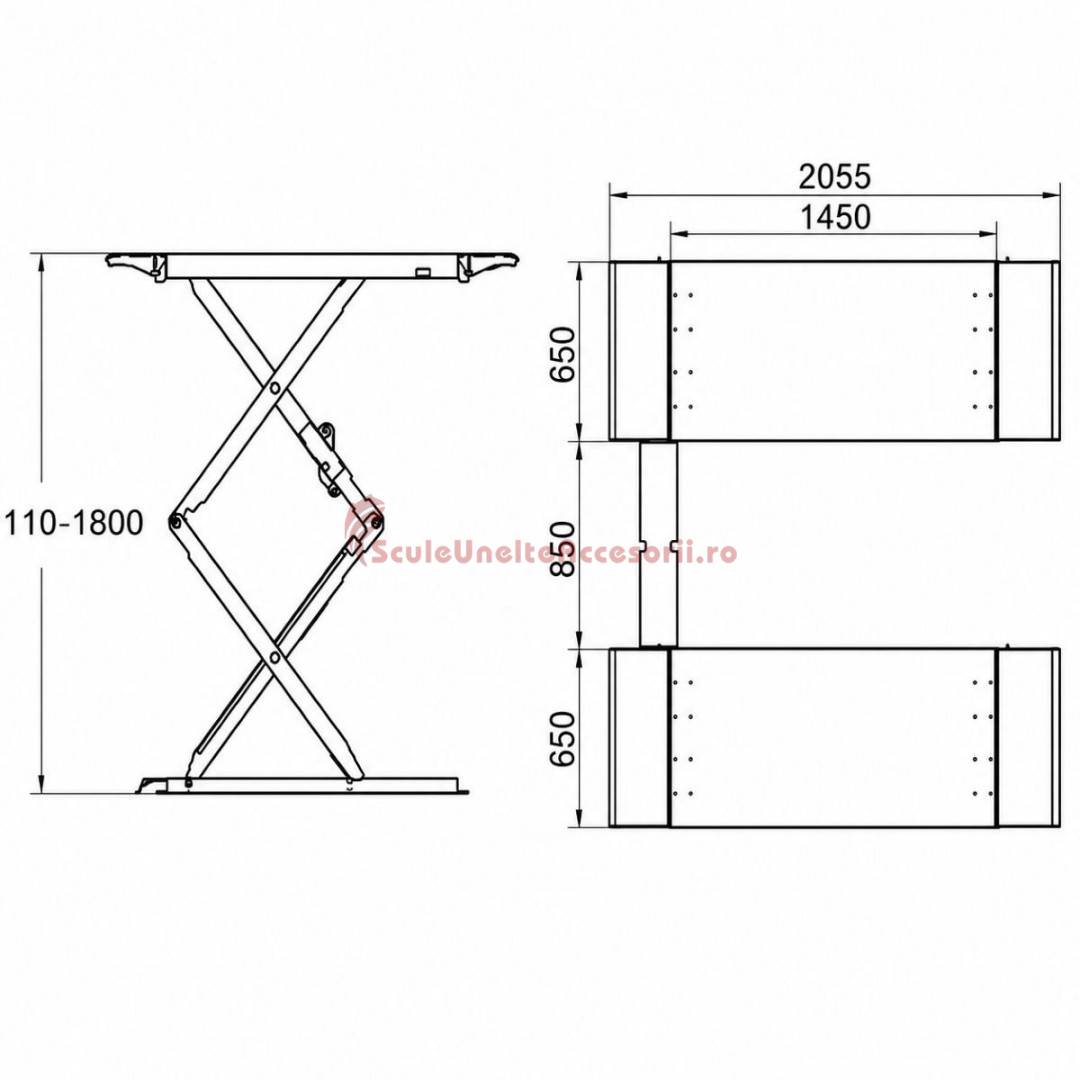

| Lungime platforma |
1450 mm |
| Lungime totala platforma |
2055 mm |
| Latime platforma |
650 mm |
| Timp de ridicare |
≤ 50 secunde |
| Presiune nominala ulei |
20 MPa |
| Presiune aer |
6 - 8 kg/cm² ( 6 - 8 bar) |
| Dimensiuni colet utilaj ( L x l x h) |
1700 x 700 x 430 mm |
| Dimensiuni colet unitate ( L x l x h) |
410 x 370 x 1080 mm |
| Greutate totala |
800 kg |
|
|
|
